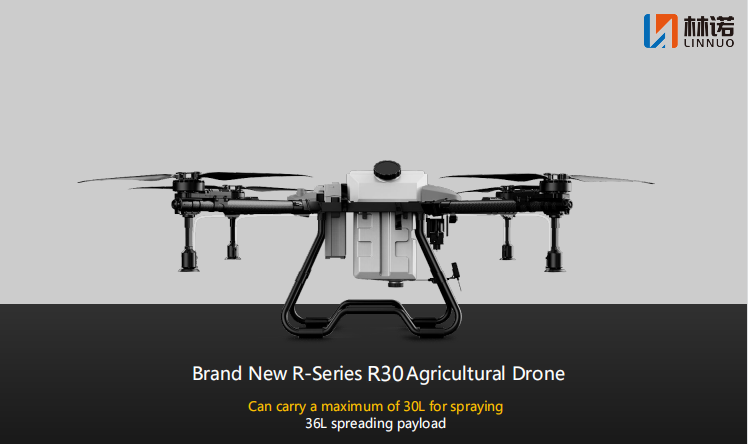

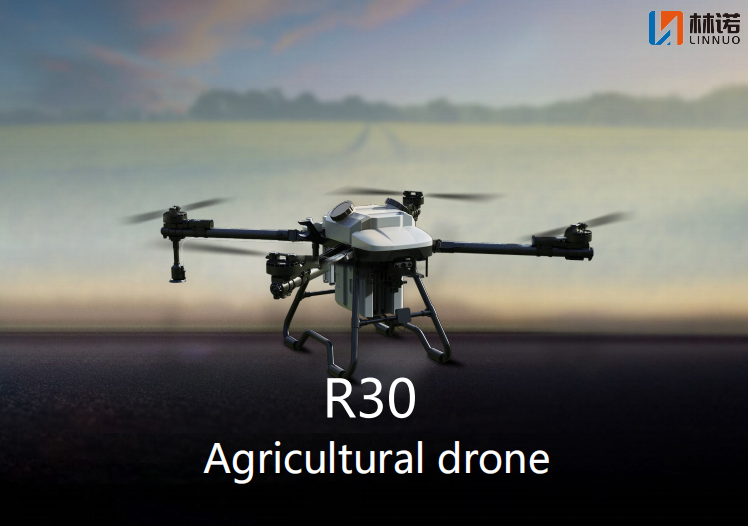

R30 Agricultural Plant Protection Drone

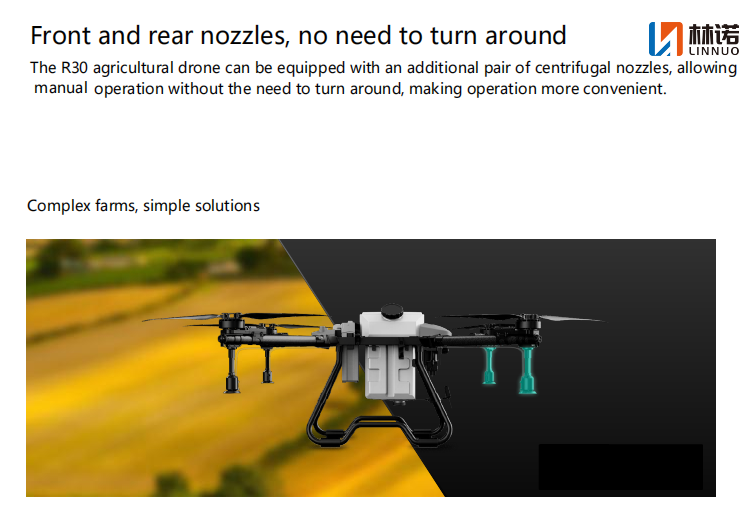

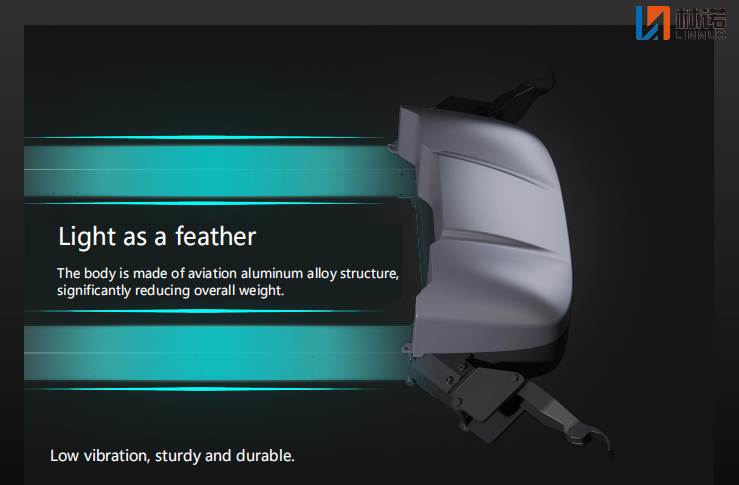

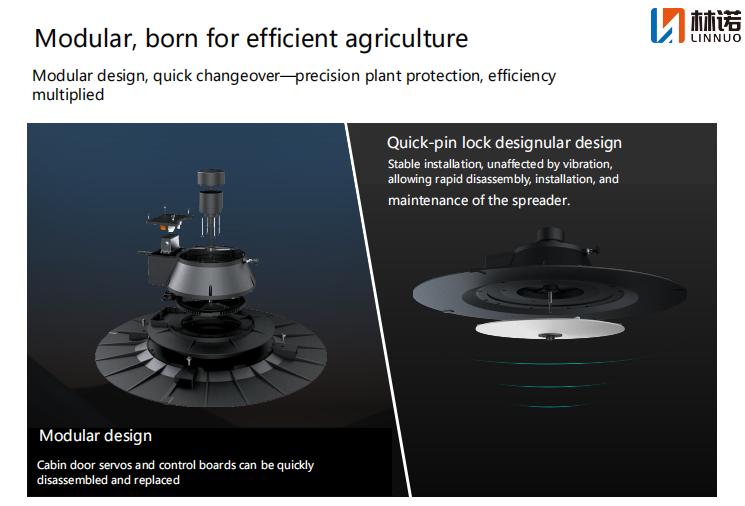

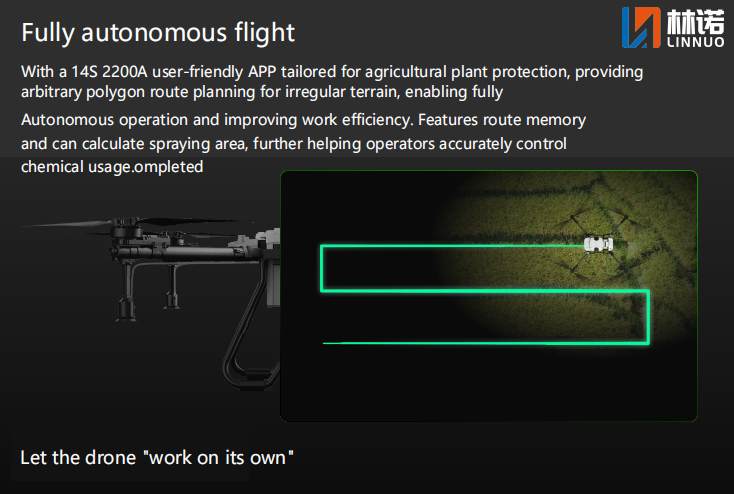

LINNUO R30 agricultural drone supports 30L spraying and 36L spreading payload, with front and rear nozzles for non-turning operation. Made of aviation aluminum alloy, it features foldable & portable body, modular quick-release design, fully autonomous flight, obstacle avoidance and terrain-following functions, adapting to complex farmland for efficient and stable plant protection.
Share
Describe
Overview of core parameters
|
(1)Technical Parameters |
|
| 1. Wheelbase | 1950 mm |
| 2. Product dimensions |

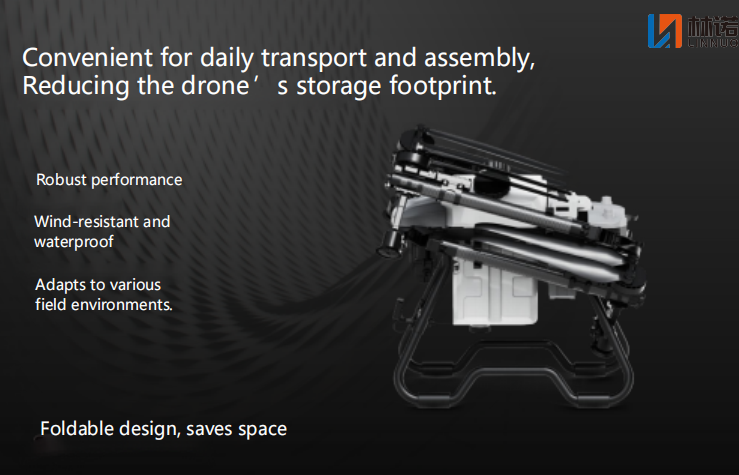

2900×2900×780 mm (arms unfolded, propellers unfolded) 2050×1610×780 mm (arms unfolded, propellers folded) 1050×620×780 mm (arms folded) |
| (2)Spraying system-Tank | |
| 1. Quantity | 1 |
| 2. Tank volume | Rated 30 liters / Full load: 30 liters |
| (3)Flight parameters | |
| 1. Total drone weight (excluding battery) | 20.8KG |
| 2. Standard takeoff weight | 29 KG |
| 3. Maximum effective takeoff weight | 68.3 KG (horizontal) |
| 4. Battery capacity |
14S (22000MAH 51.8V) |
| 5. Maximum power |
12000 W |
| 6. Flight time |
18.10 MIN (@22000 mAh battery & takeoff weight: 29 kg) 8 MIN (@22000 mAh battery & takeoff weight: 60.3 kg) |
