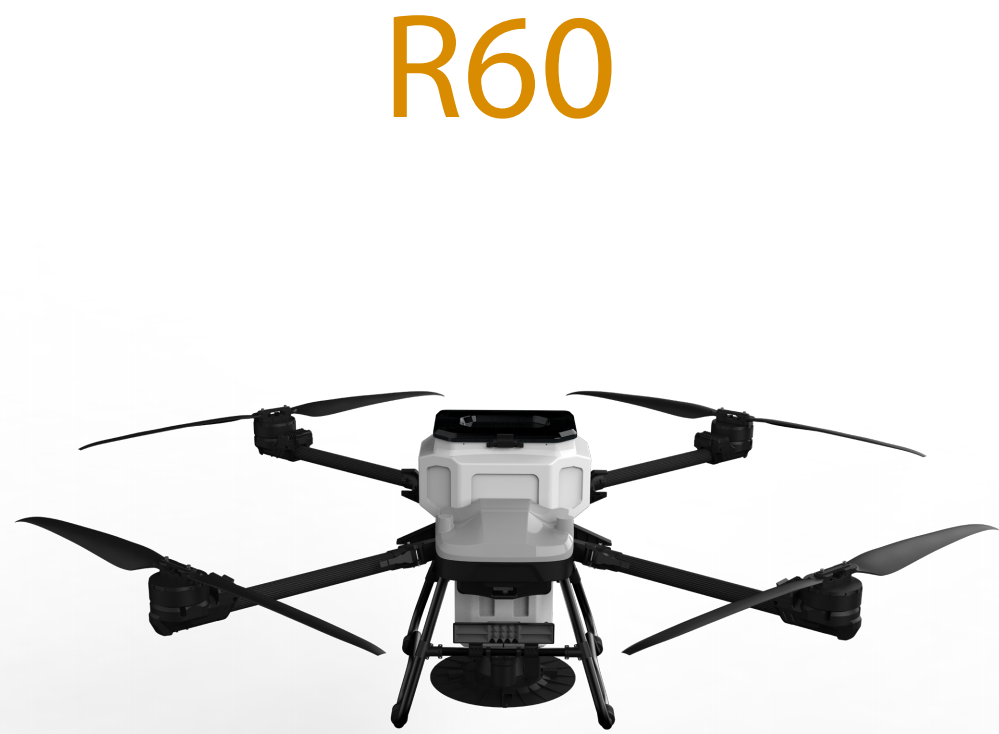

R60 Agricultural Plant Protection Drone

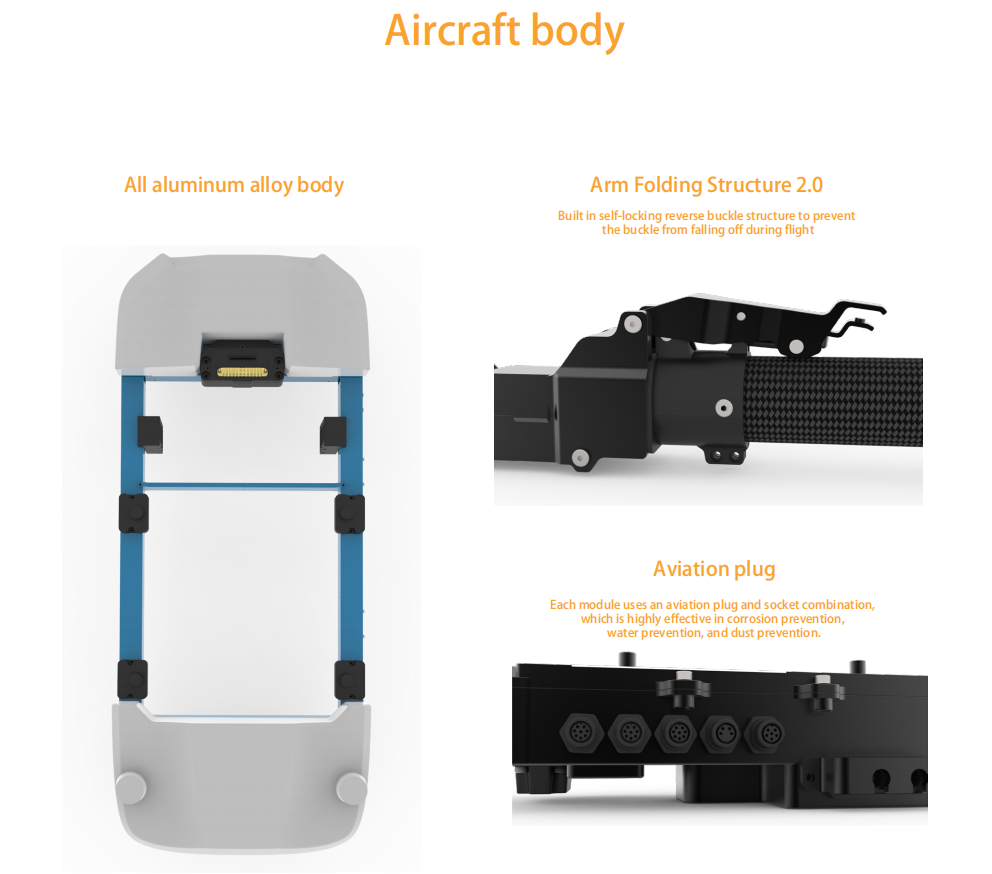

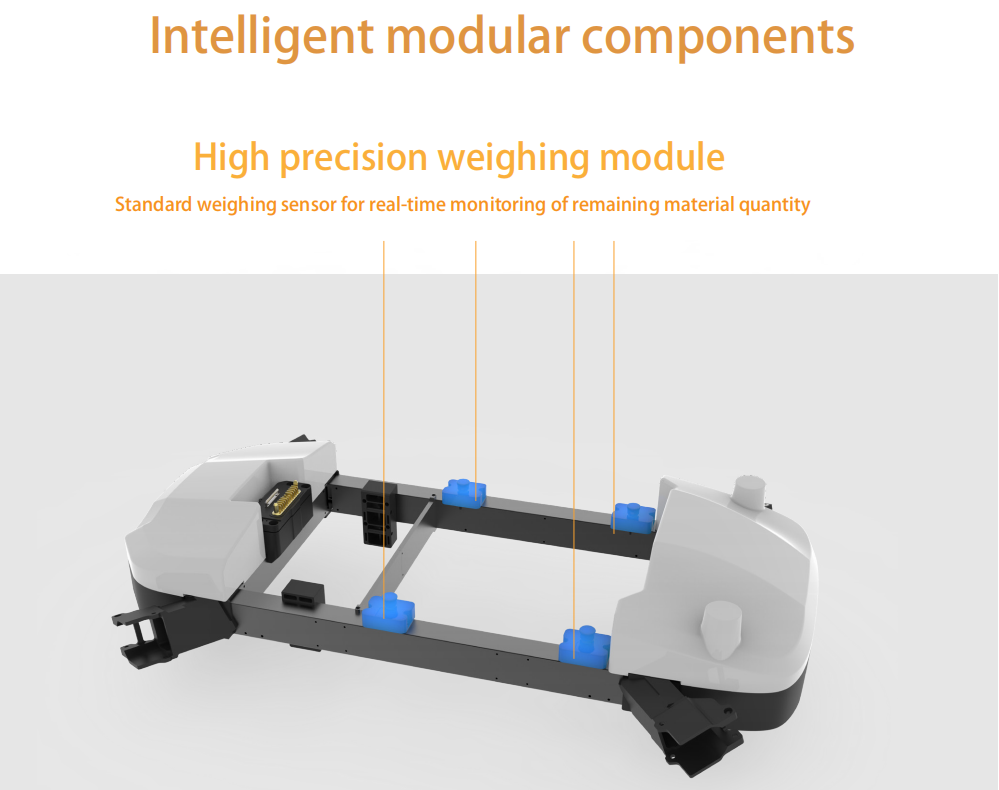

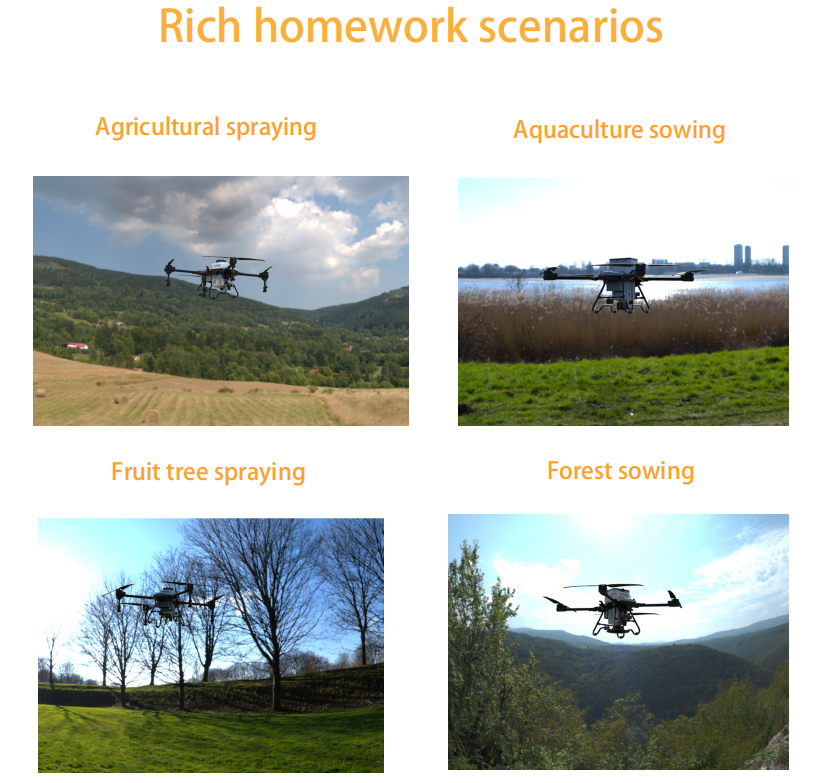

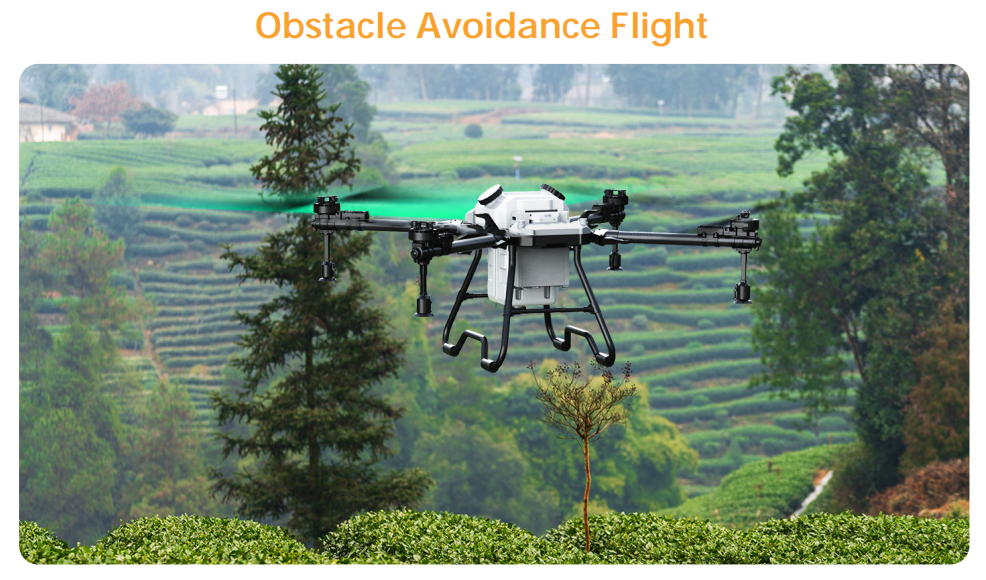

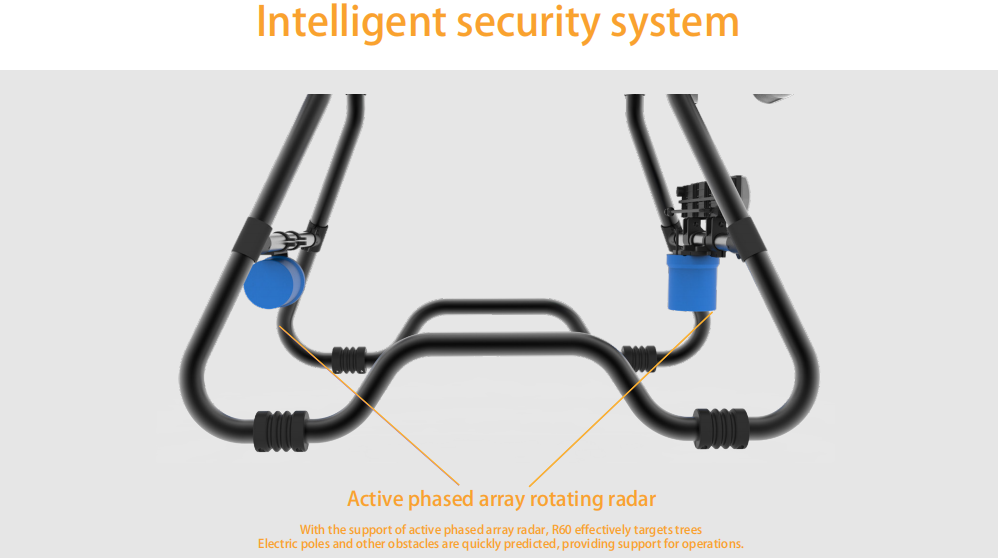

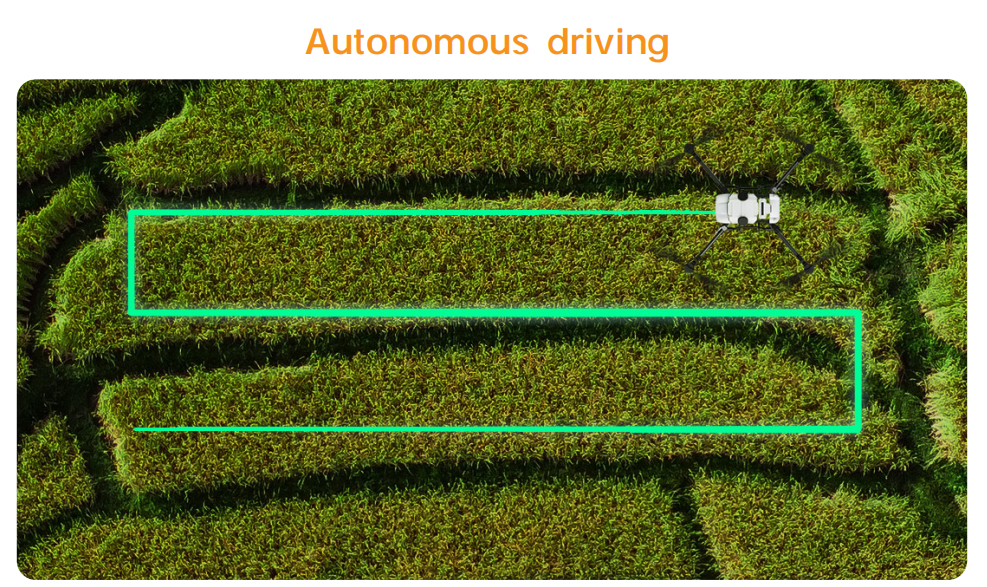

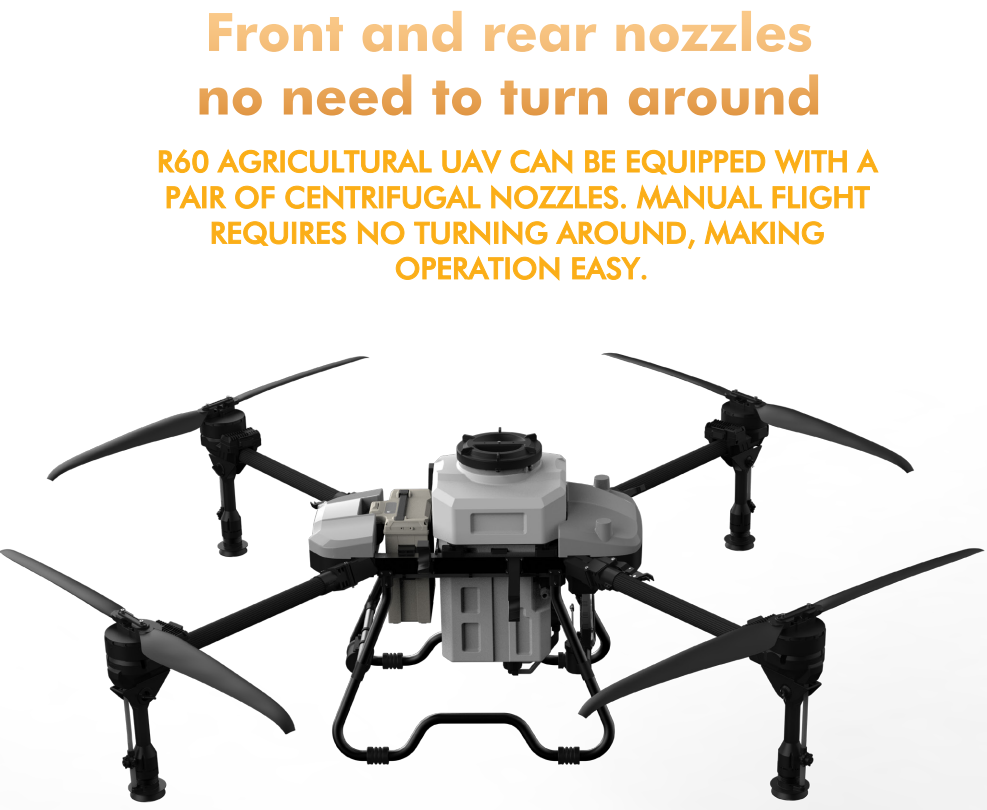

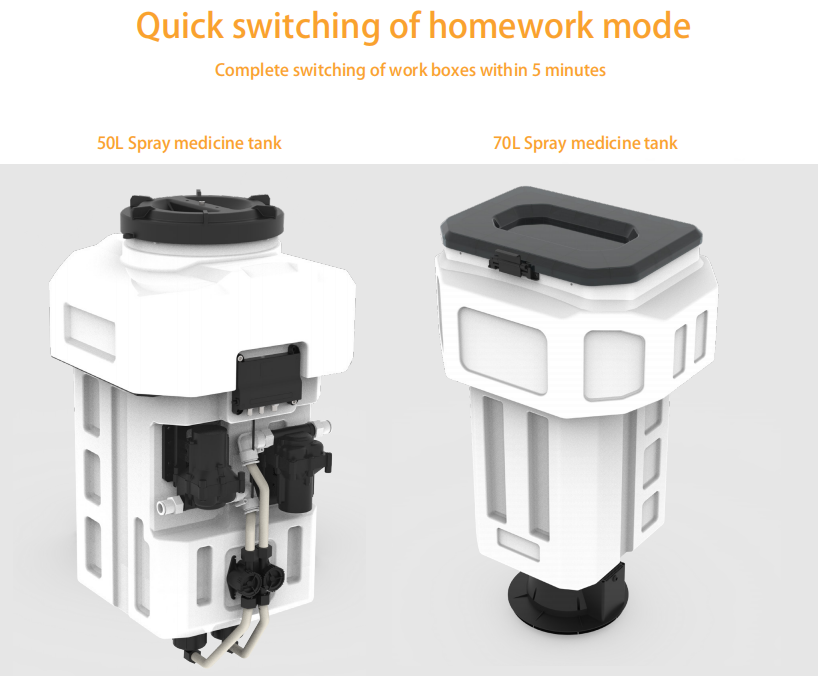

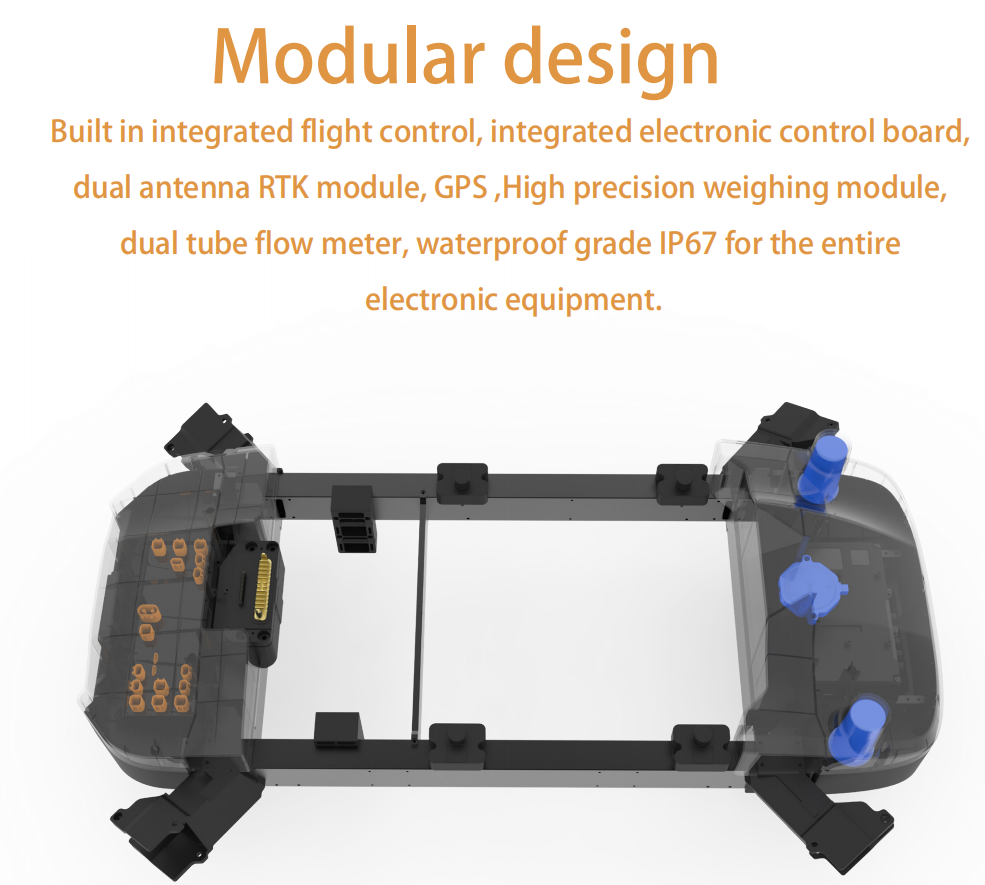

LINNUO R60 heavy‑lift agricultural UAV supports 50L spraying & 70L spreading, with front and rear nozzles for non‑turning operation. It features modular quick‑swap, foldable portable body, omnidirectional radar obstacle avoidance, terrain following and high‑precision weighing, suitable for farmland, fruit trees, forestry and other scenarios to deliver efficient & stable intelligent plant protection.
Share
Describe
Overview of core parameters
| (1)Technical parameter | |
| 1.Wheelbase | 2320mm |
| 2.Product size |

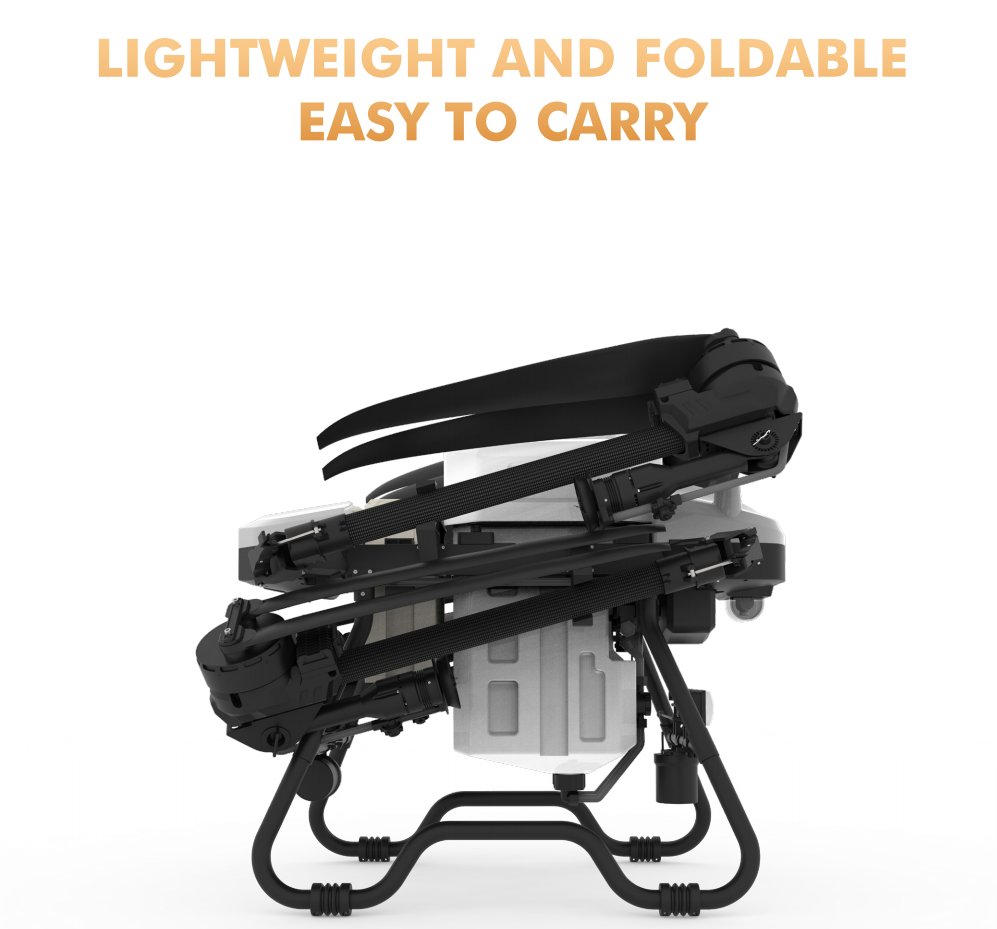

2850×2850×855mm（Arm deployment, blade deployment） 1800×1775×855mm （Arm deployment, blade folding） 920×955×920mm（Arm folding and blade folding） |
| 3.Total machine weight (excluding battery) | 34.8KG |
| 4.Standard take-off weight | 98 KG |
| 5.Maximum effective take-off weight |
105 KG (within an altitude of 2000 meters) |

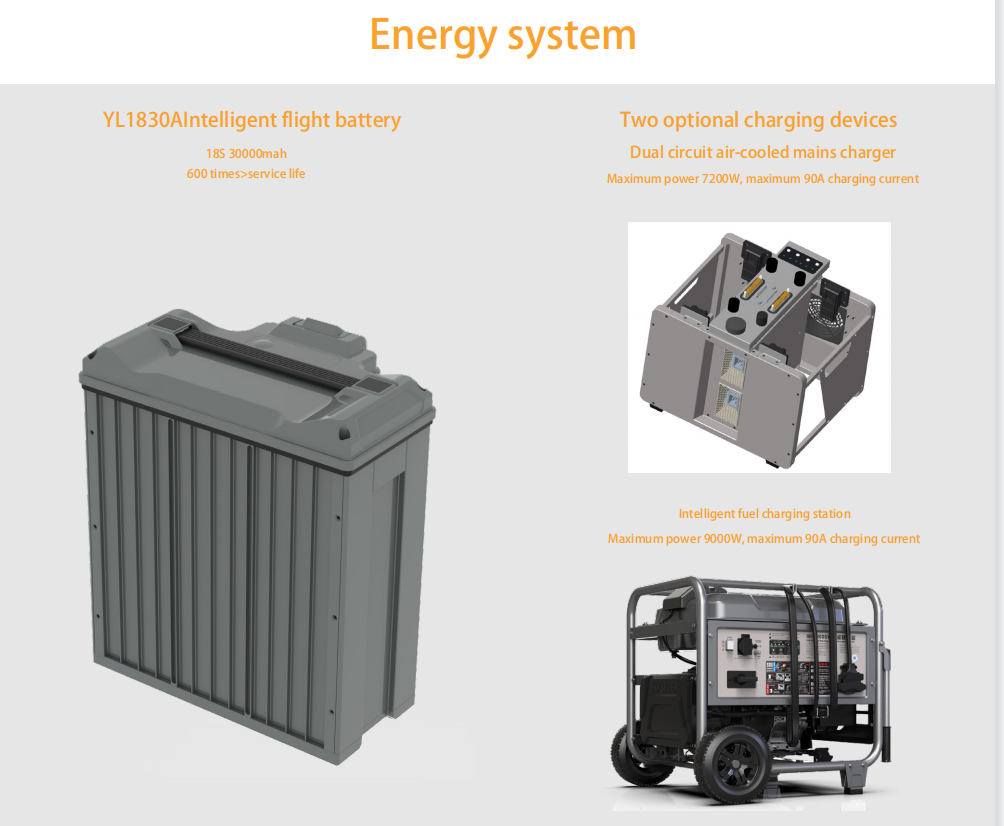

| 6. Battery Capacity | 18S (30000MAH 70.4V) |
| 7. Flight speed | 8m/s |
| 8. Flight time |
8 minutes and 30 seconds (18S@30000 mAh battery & take-off weight:100kg ） |

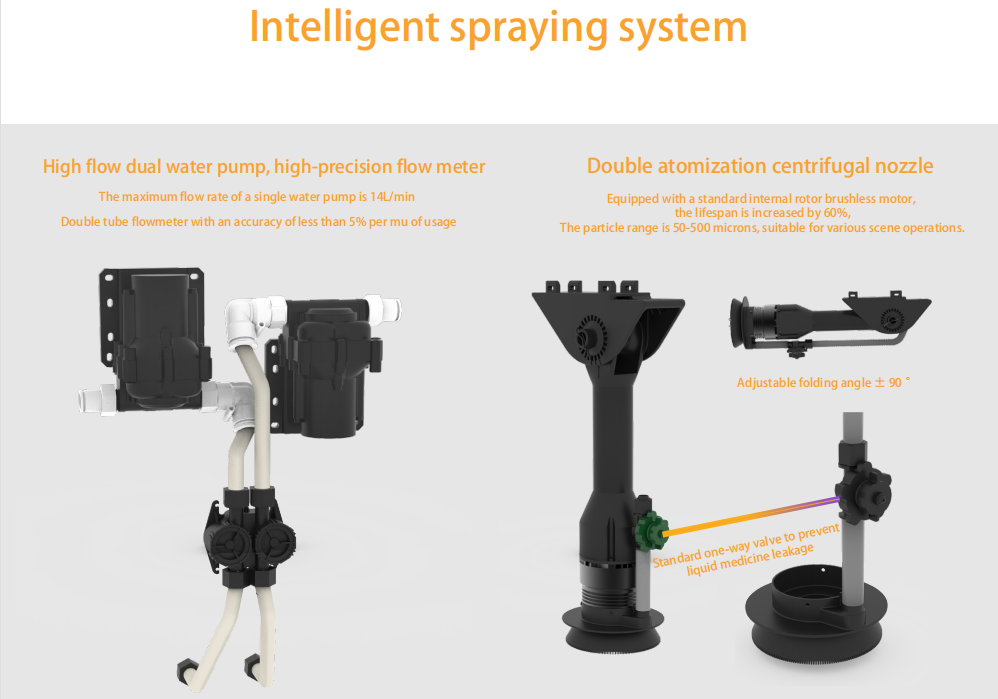

| (2)Spreading Parameter | |
| 1. Spray medicine tank |
Rated:50L |
| 2. Spraying efficiency | 13ha-30ha/h |
| 3. Spray amplitude | 6-12m （3.5m height） |
| 4. Maximum flow rate |
24L/min |
| 5. Atomized particle diameter |
50-500um |
| (3)Spreading Parameter | |

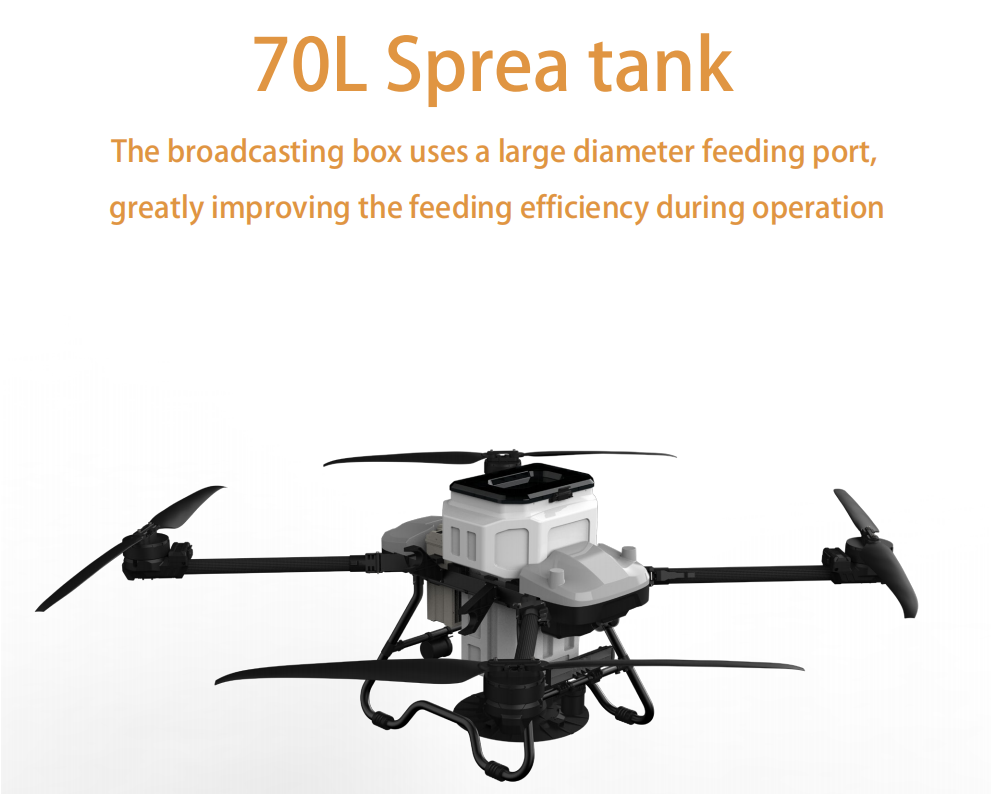

| 1. Fertilizer Tank Volume |
70L |
| 2. Spreading Efhciency | 5.3Ha/h |
| 3. Spreading Range | 6~15m( varies with the discharging rate of height) |
| 4. Max Discharging Rate |
80KG/min |
| 5. Suitable Material | 0.5~20mm dry solid particle |
